Standard Features
The following features come standard with every Frazer vehicle.
What Comes Standard

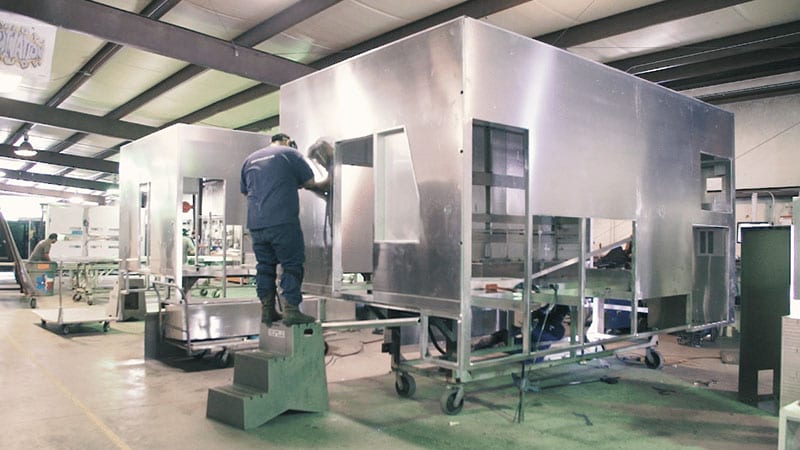

All Aluminum Construction
Wood products are never used in the construction of our module bodies, only high quality aluminum!

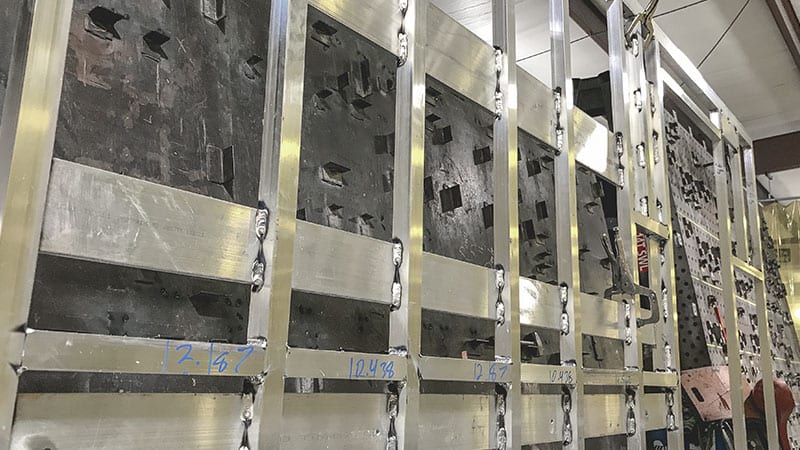

Durable Aluminum Framing
6061-T6 structural aluminum alloy is used for all frame components on the module body.
Ultra-Strong Mounting Method
Shear-plate method of securing the module to the chassis frame.

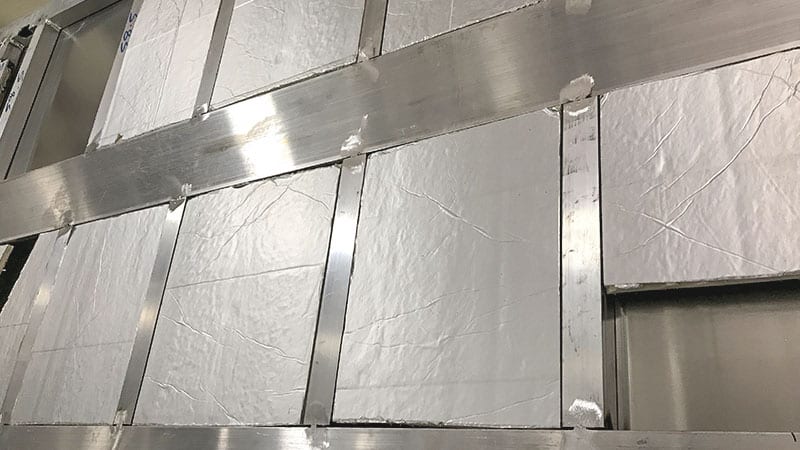

Sound Dampening and Thermal Insulation
The interior body is insulated with a composite sound-dampening and thermal insulating material applied to the roof, four (4) side walls, all compartment and module entry doors.

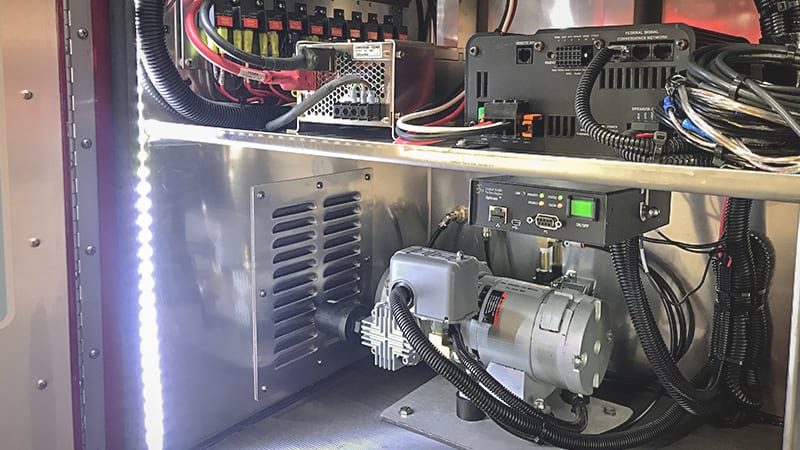

Easily Accessible Components
Components are installed to allow for quick and easy access.

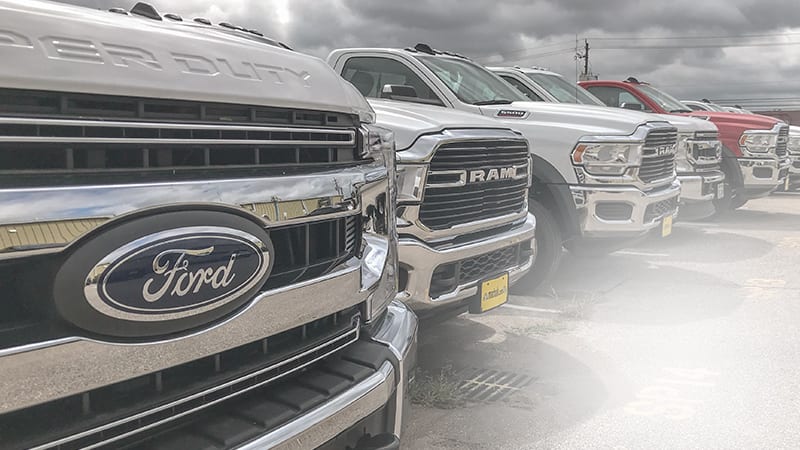

Chassis Choice Options
We build on several different types of chassis, including Ford, RAM, Chevy & International.

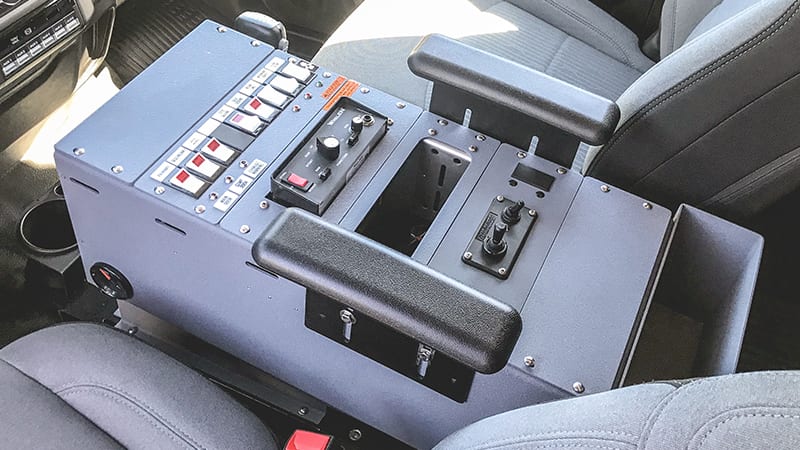

Chassis Cab Console
Configurable all-aluminum console in chassis cab.

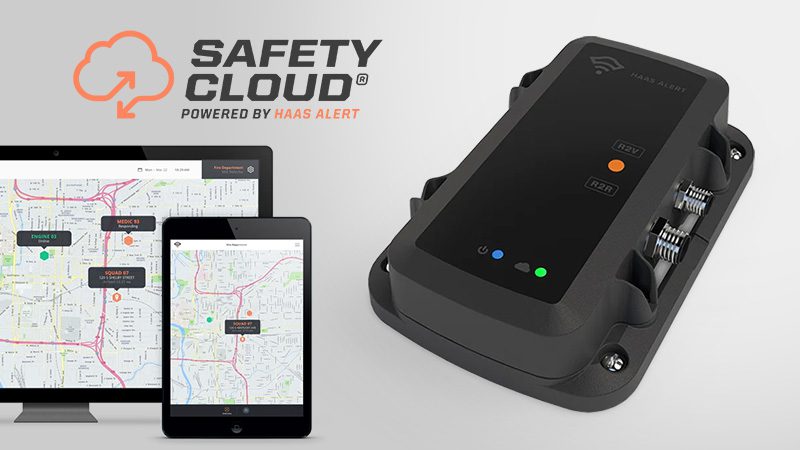

Safety Cloud® by HAAS Alert
Delivers real-time Slow Down/Move Over alerts to civilian drivers from emergency vehicles, reducing the risk of collision by 90%.

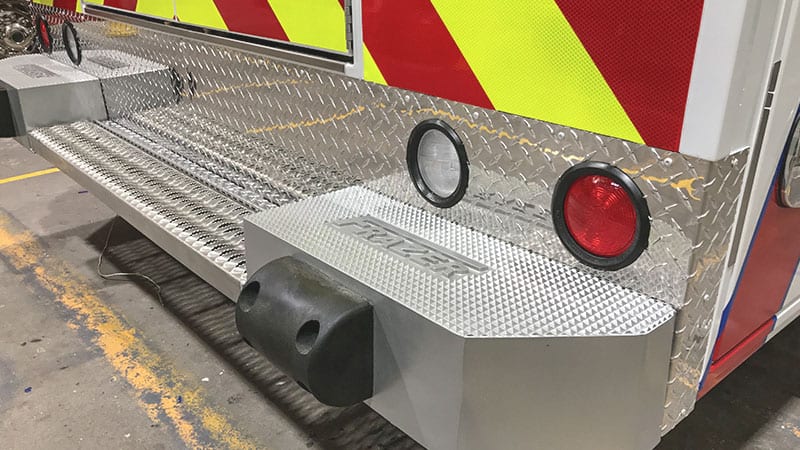

Full Width Rear Bumper
Full width rear step/bumper fabricated from “grip strut” aluminum, and hinged to allow lifting.

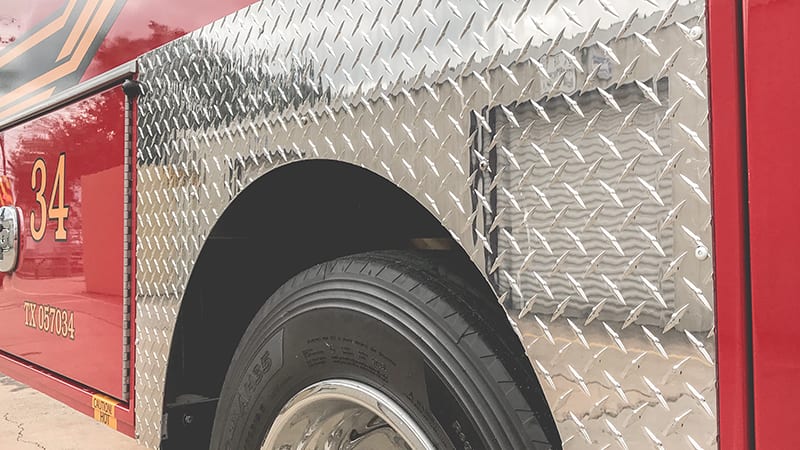

Tread-Brite Stone Guards
Aluminum tread-brite stone guards are located on all four lower outside corners and above each rear wheel.

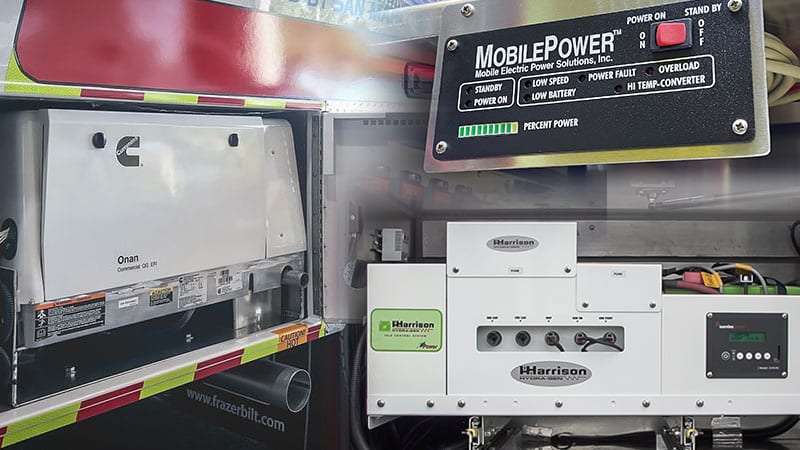

120V Independent Power Source
120V generator-powered electrical system independent of the chassis electrical.

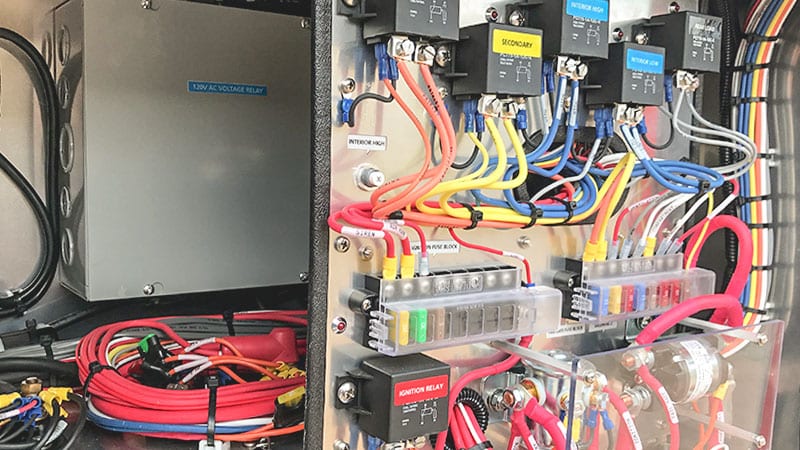

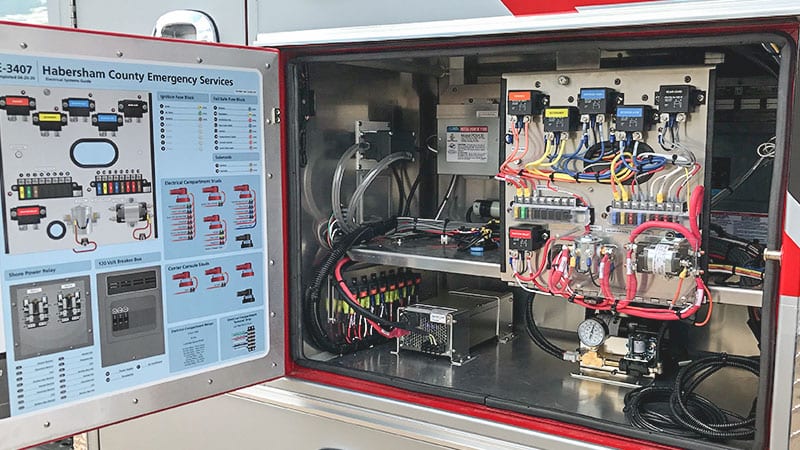

Easily Accessible Electrical Compartment
Easily accessible electrical compartment located on exterior of vehicle.

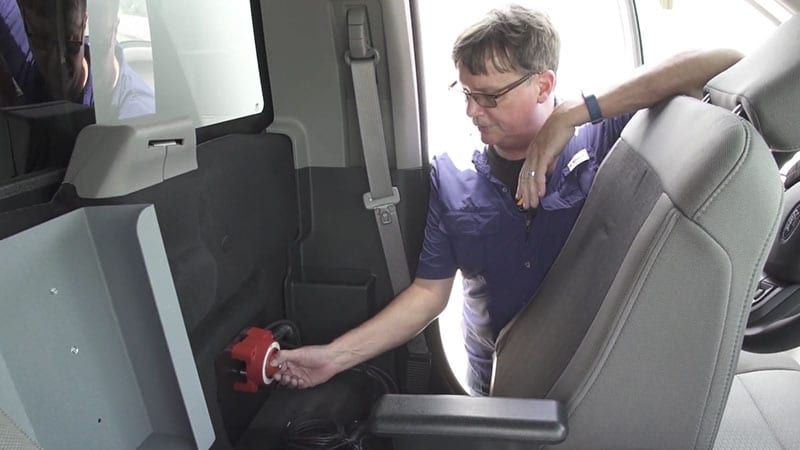

Module Electrical Disconnect Switch
Module disconnect switch mounted in the chassis cab behind the driver’s seat. This acts as an “out of service” switch disconnecting the module 12VDC load from the chassis batteries when the switch is in the “off” position.

Electrical Circuit Protection
Each 115V circuit is protected by a minimum 15 amp breaker.

Self Contained HVAC System
120V self-contained module heater & proprietary best-in-class air conditioner.

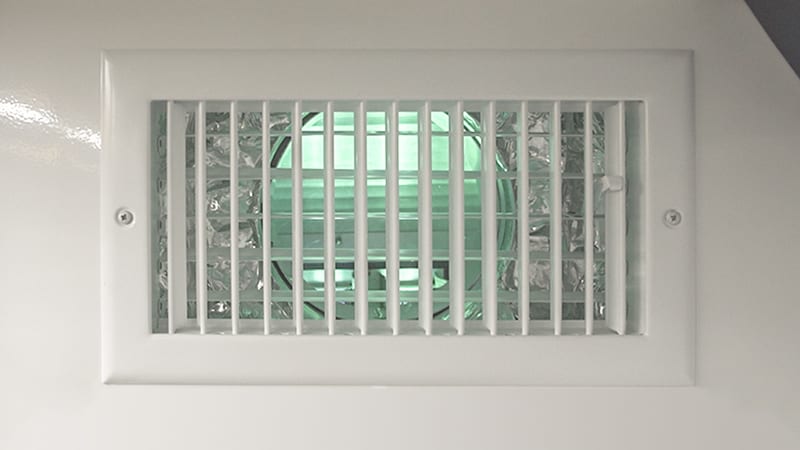

Ultraviolet Light Disinfection
A particulate filter and ultraviolet (UV) light works together to clean and decontaminate the breathable air inside your unit.

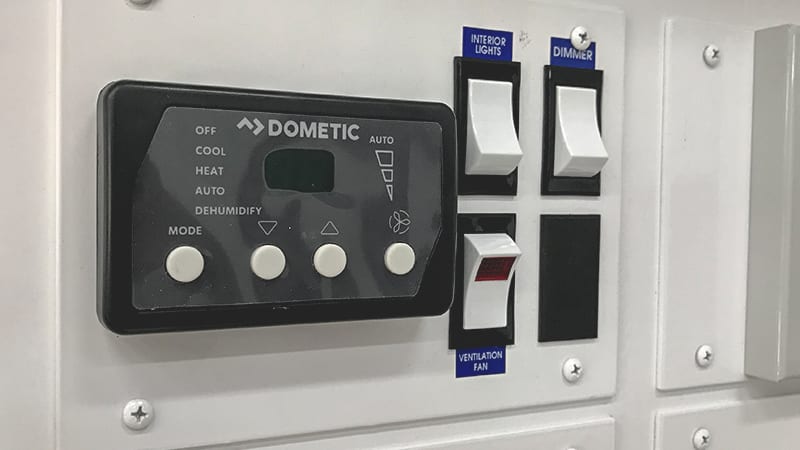

Thermostat
Easily control and program your air conditioner from the Action Wall.

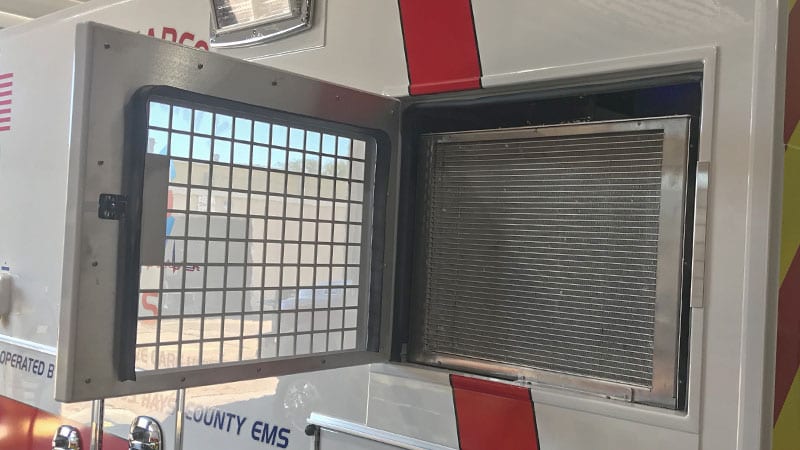

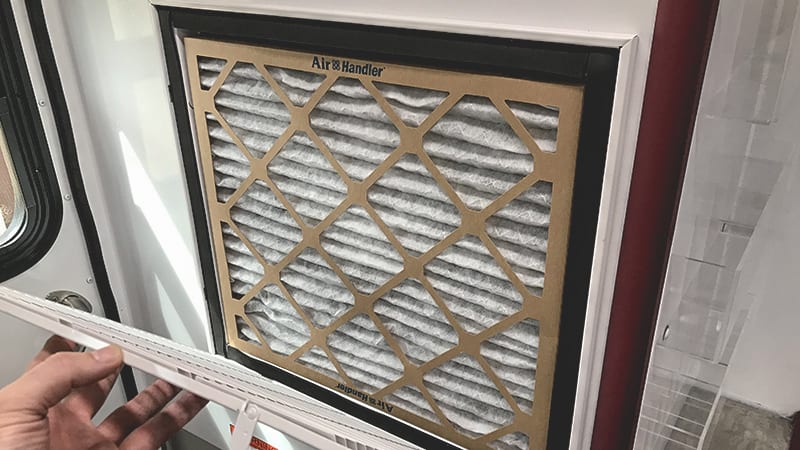

Easy Filter Replacement
Replacing your air conditioner filter is quick and easy!

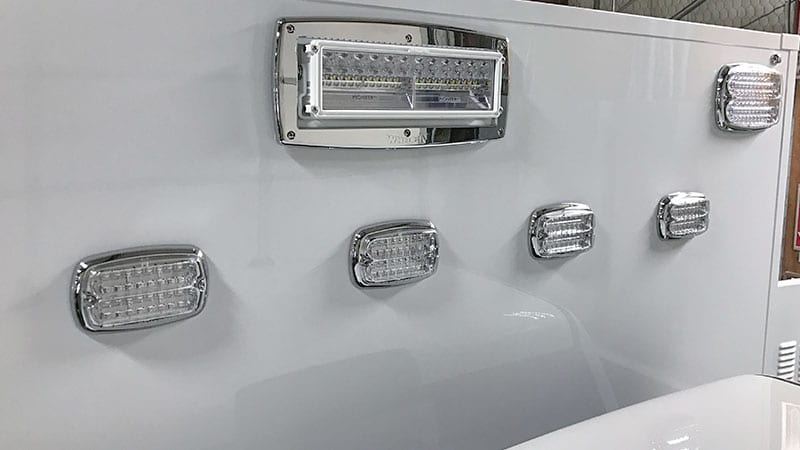

LED Emergency Lighting
All LED primary and secondary emergency lighting.

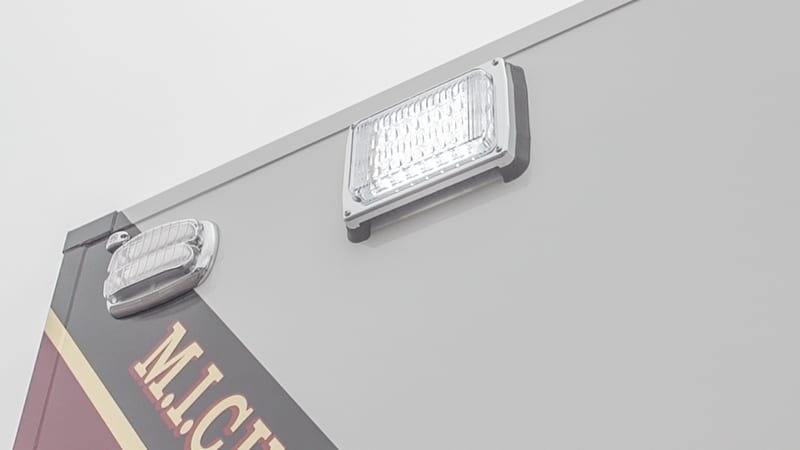

LED Scene Lighting
All LED scene lighting with several model options.

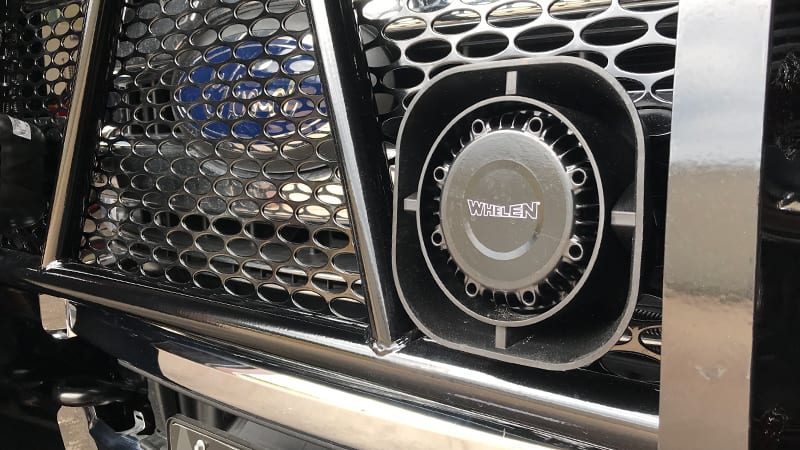

Sirens
Whelen Siren & Speaker System with several mounting options.

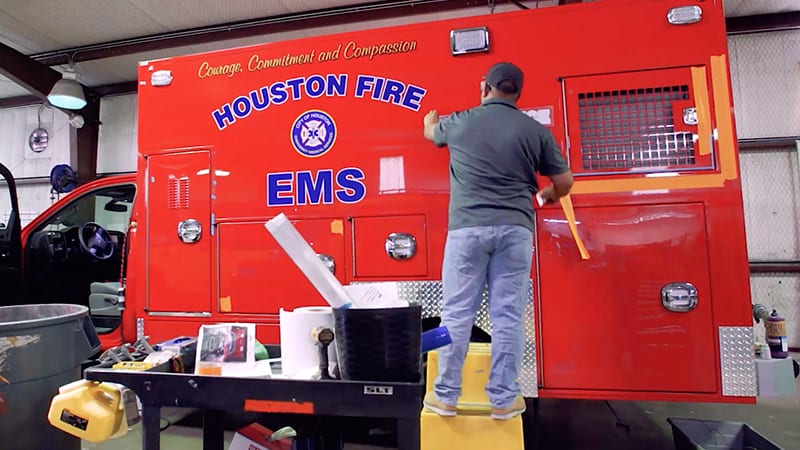

Graphics Packages
Highest quality 3M 680 reflective vinyl material comes with a 5 year warranty.

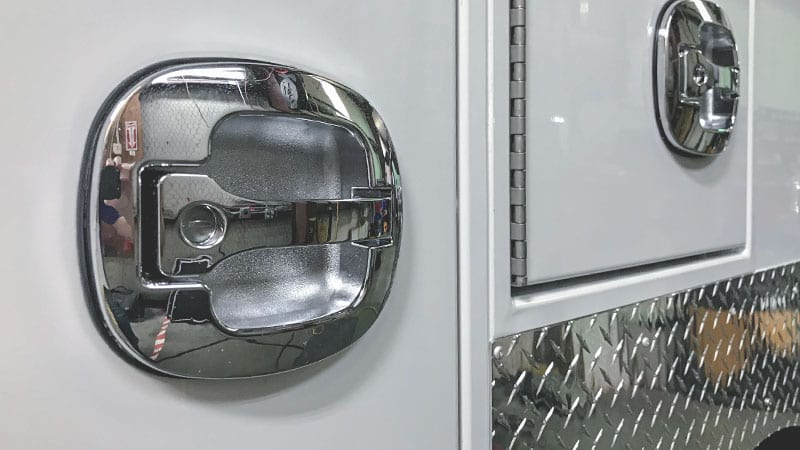

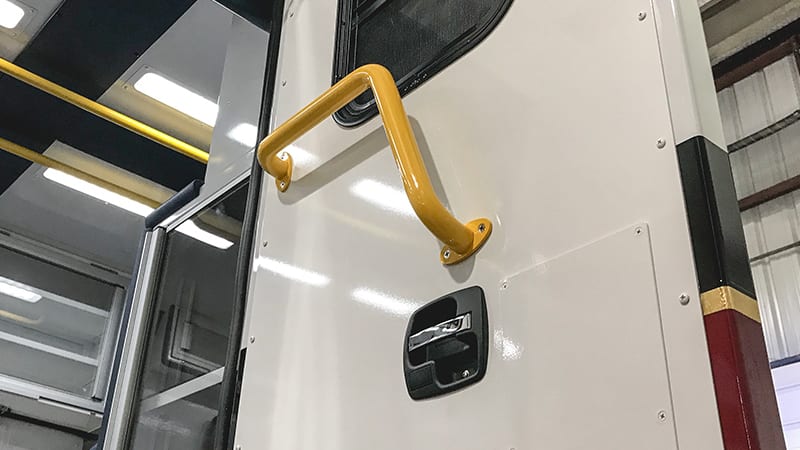

Automotive Style Latches
FMVSS 206 approved Eberhard brand automotive style latches with free floating handle and emergency release on rear and side entry door.

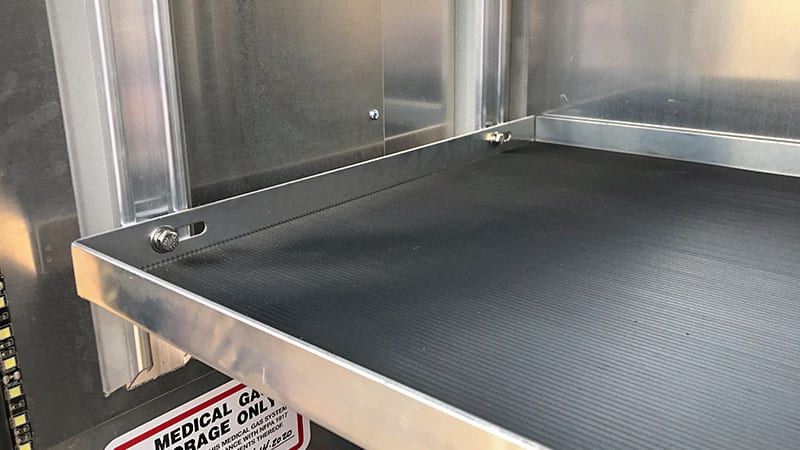

Adjustable Compartment Shelving
All adjustable unistrut track shelving on exterior compartments.

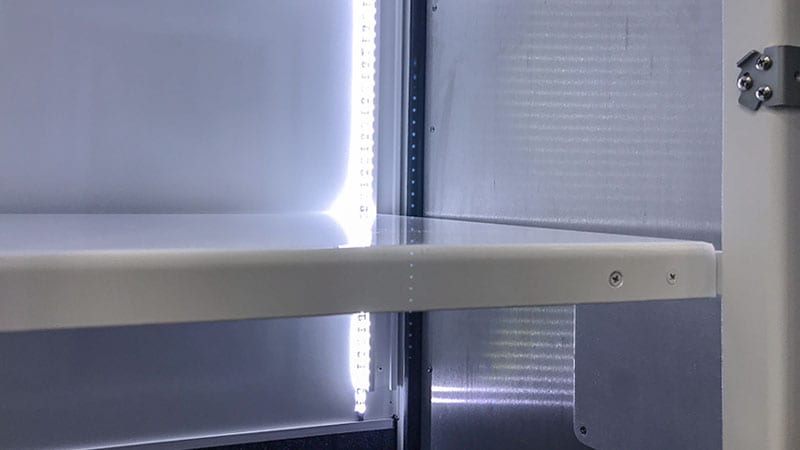

LED Compartment Lighting
All LED strip magnetic compartment lighting.

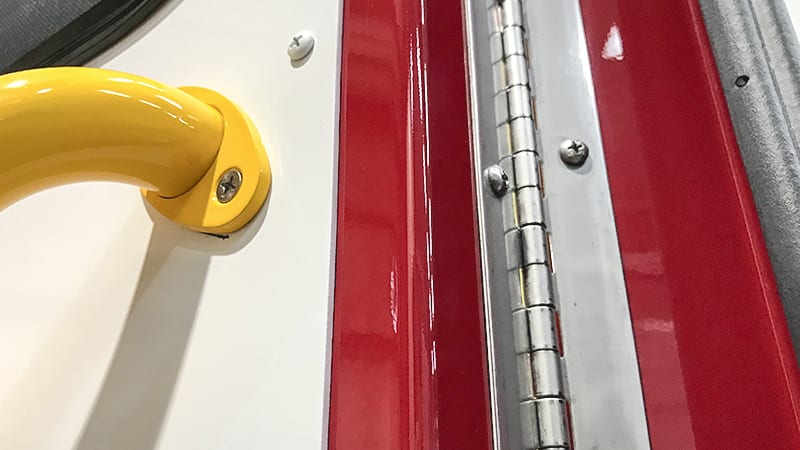

Stainless Steel Door Hinges
Door hinges are stainless steel hinge with minimum 3/16″ stainless steel pin.
Aluminum Compartment & Entrance Doors
Compartment doors are constructed of .100″ aluminum formed to provide a 1 1/2″ thick door. Entrance doors are constructed of .100″ aluminum formed to provide a 2″ thick door.

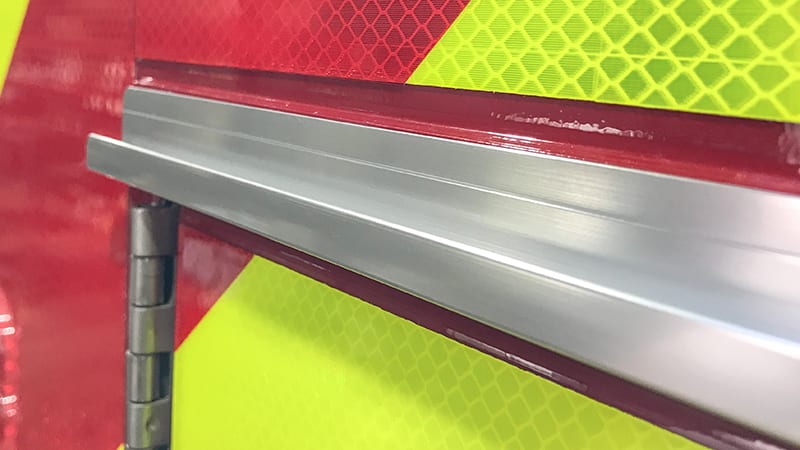

Door Drip Rails
“J” channel drip rails over each compartment door.

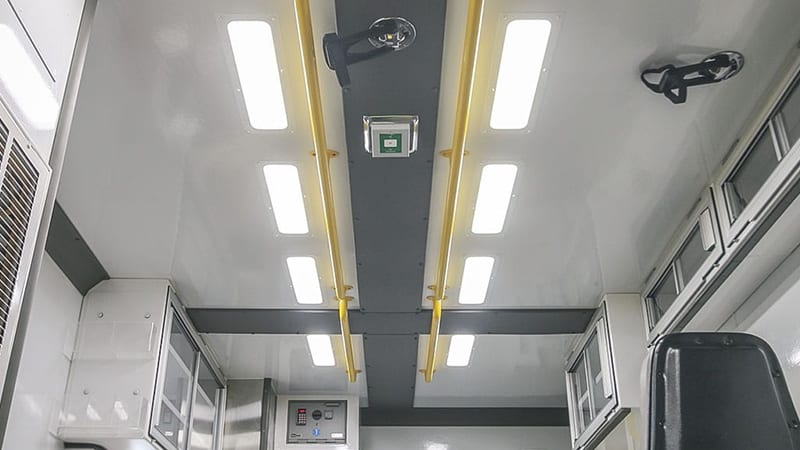

All LED Interior Lighting
All LED interior lighting featuring dimming and timer controls.

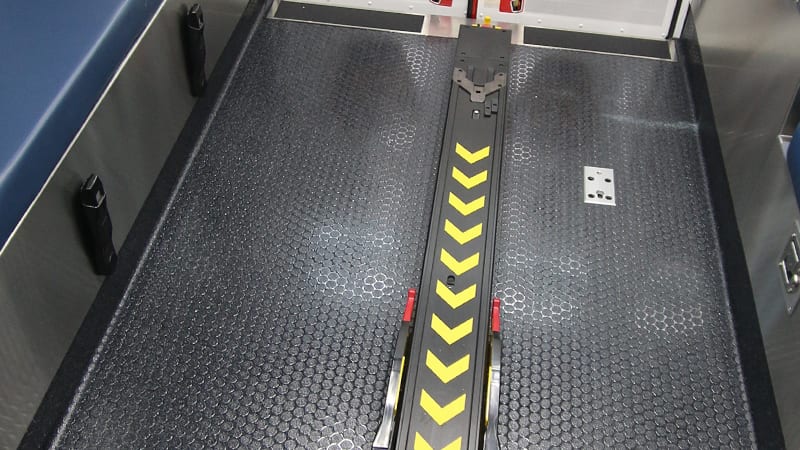

Vinyl Antimicrobial Flooring
Loncoin II series boasts a coin surface embossing that delivers a striking directional design, enhanced traction, and hides scuffing.

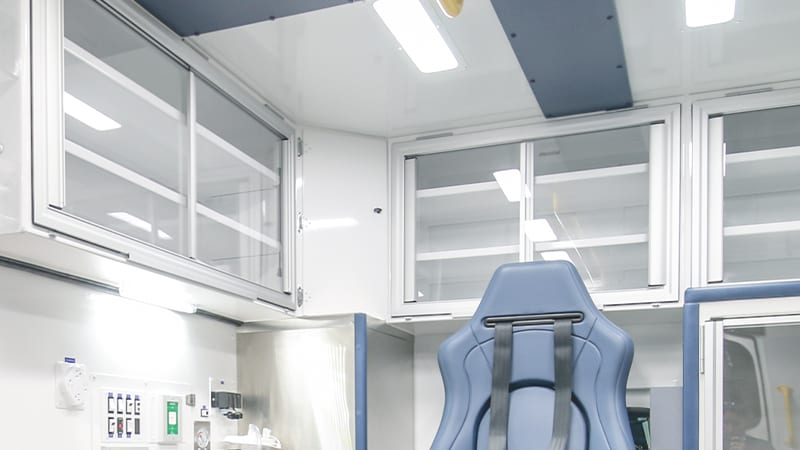

Life Defender Cabinets
Aluminum powder-coated 12″ deep interior cabinets with LifeDefender doors.

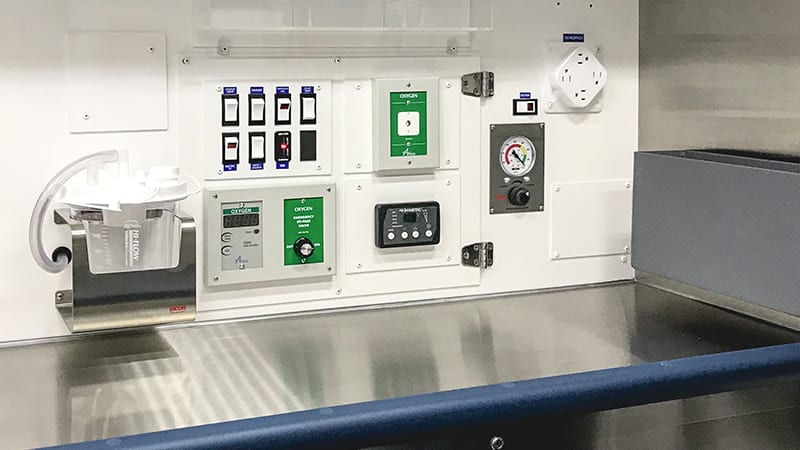

Action Wall Area
Action Wall area with hinged service access panel to back of oxygen outlets and switches.

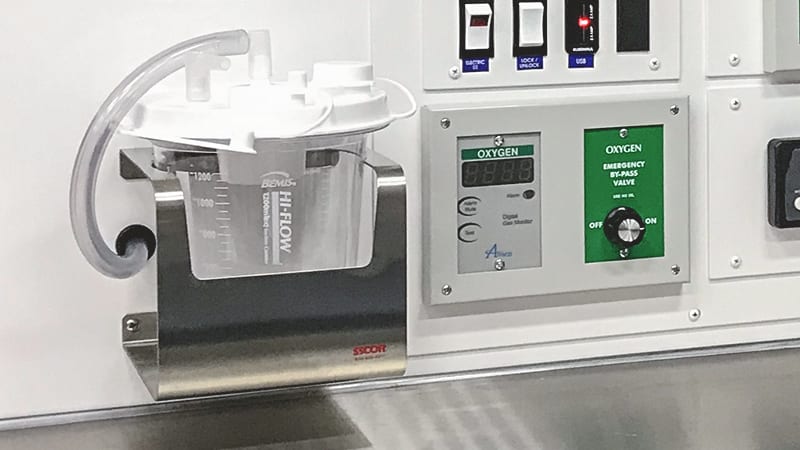

Suction Pump
Electrically operated SSCOR suction pump.

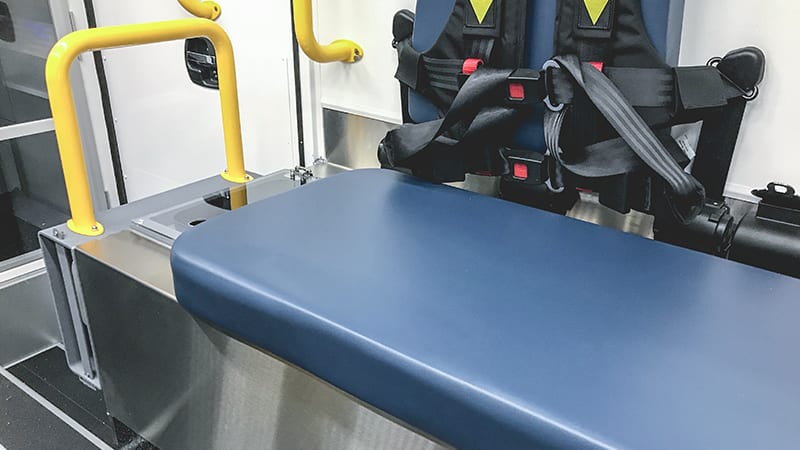

Seamless Cushions
Protek padded seamless back and headrest cushions.

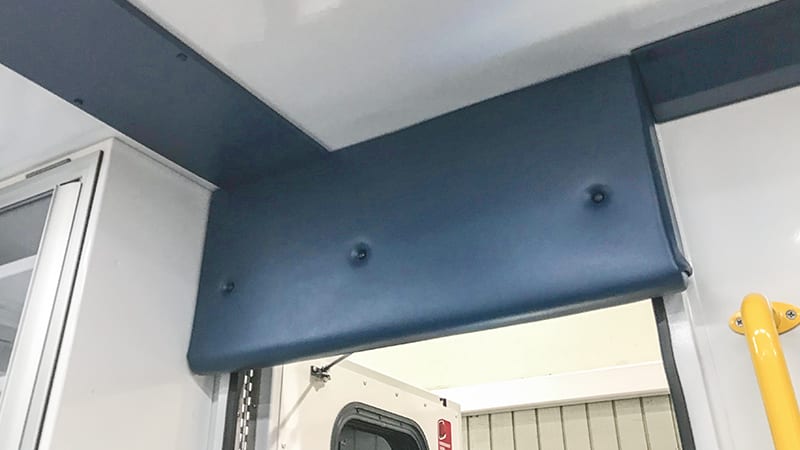

Padded Headknockers and Raceways
Padded vinyl covered headknockers and raceways throughout interior of unit.

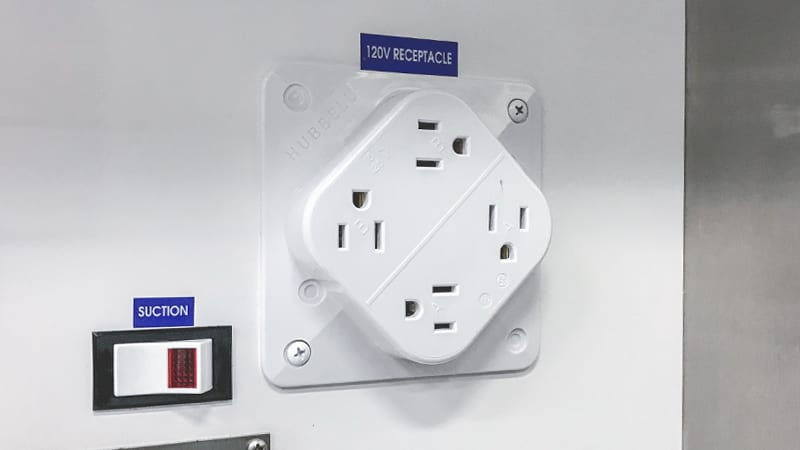

Electrical Outlets
120VAC outlets conveniently located throughout unit.

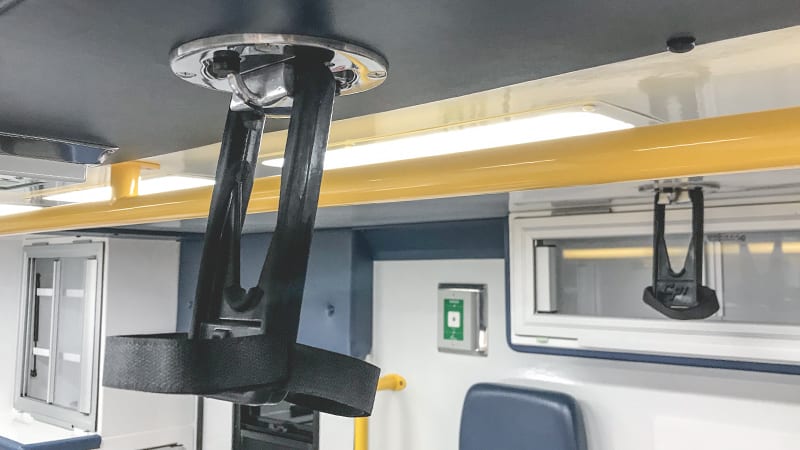

Ceiling Mounted IV Holders
Two ceiling mounted, near-flush, rubber IV holders.

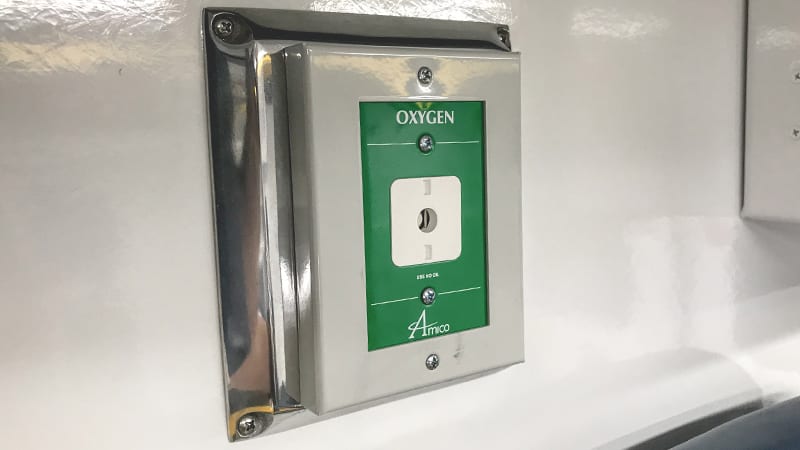

Oxygen Outlets
Three oxygen outlets located throughout unit.
